Brief Introduction




Fused silica rollers are widely used for glass manufacturing  glass transformation, steel processing and non-ferrous metal processing.

Fused silica rollers with high-quality, high-purity fused quartz as raw material, the introduction of foreign advanced
production technology from forming and processing. Horizontal glass tempering furnace is a key component to support and transfer glass. Fused silica rollers has excellent physical properties to ensure that work at ambient temperature and high temperature performance and stability.



Typical Composition

Item SiO2 Al2O3 Fe2O3 TiO2 MgO Na2O CaO K2O
  >99.6% 0.12% 0.10% 0.03% 0.01% 0.01% 0.01% 0.01%

Physical Properties

Bulk Density Open Porosity Flextural Strength  Compressive Stength
1.95-2.00 g/cm3 <13% 26Mpa 47Mpa

Thermal Properties

Conductivity  20℃ Conductivity   800℃ Expansion Coefficient Max Use
0.64W/m·K 0.55W/m·K 0.7×10-6/℃ 1500℃

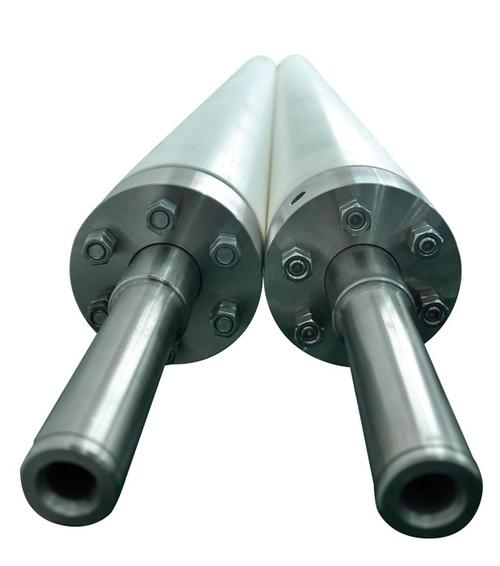

Fused Silica Roller
